Optional Intake Tube for JAFV Pump Vault - 8" dia x 30" long - Adds 5000gph to JAFV capacity
Details
Details
Product Description
EasyPro JAFV Pump Vault Intake Tube, 8" dia. × 30" — supplemental intake extension adding 5,000 gph capacity to the JAFV large vault.
Overview

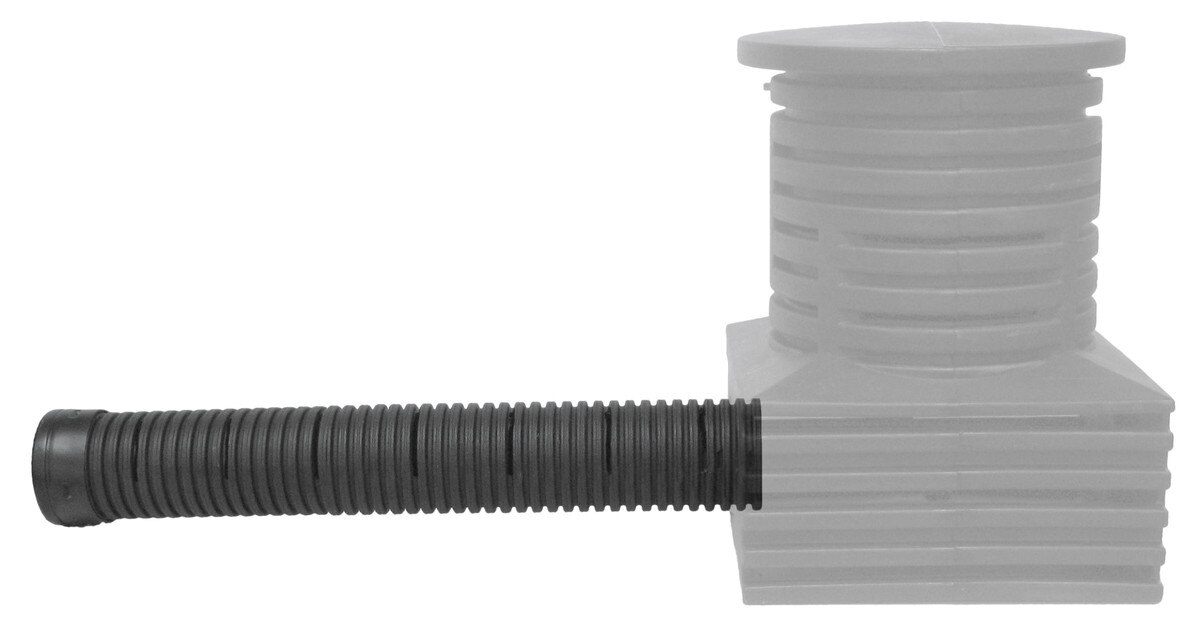

The EP-JAFV30 is an optional 8" diameter × 30" long intake tube for the EasyPro JAFV Large Pump Vault (EP-JAFV). Connecting a second, remote intake point within the reservoir adds approximately 5,000 gph capacity and prevents dead zones of uncirculated water in large reservoir footprints.
The large 8" diameter tube is sized to match the high-flow capacity of the JAFV vault and its associated high-volume pumps. The tube connects to the vault body and extends horizontally through the AquaBlox modules. Compatible only with EP-JAFV Large Pump Vault.
Specifications
| Tube Size | 8" dia. × 30" long |
| Capacity Added | ~5,000 gph |
| Compatible Vault | EP-JAFV Large Pump Vault |
| Application | Extended intake for large pondless reservoir |
| Brand | EasyPro |
| Part No. | EP-JAFV30 |
