Pga Series, 1" Electric Valve 24Vac Globe/Angle Configuration
Details
Details
Product Description

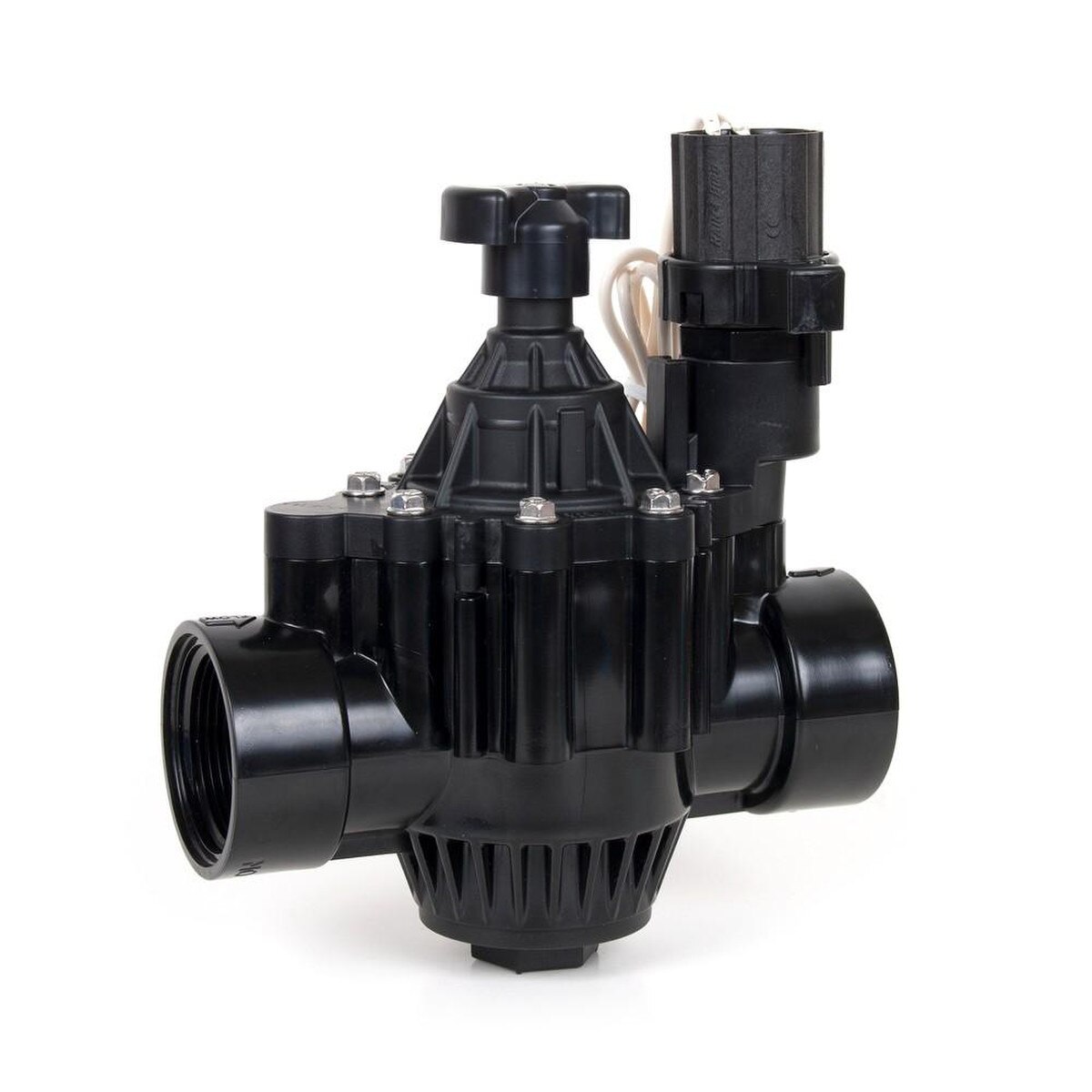

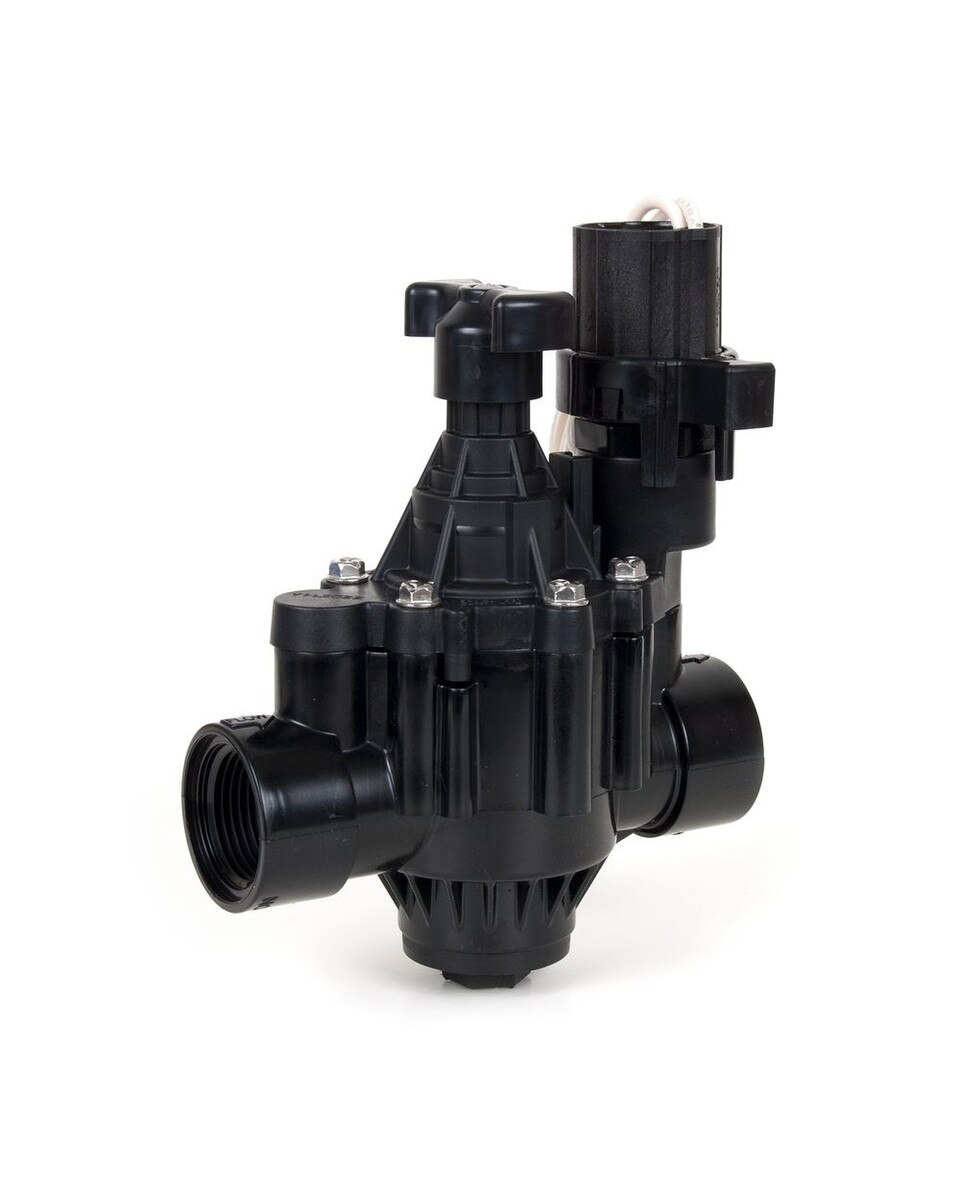

Rain Bird PGA Series 1" Globe/Angle Solenoid Valve, Scrubber, Flow Control, 24 VAC
Overview
Rain Bird PGA Series solenoid valve in a globe/angle configuration. Fiber-reinforced nylon body; external flow control; Scrubber mechanism; 24 VAC coil.
Globe/angle body reduces turbulence for quieter operation and lower pressure loss at high flow. Operating pressure 20–150 PSI; female NPT connections. Five-year warranty. Suitable for residential and commercial lateral zones.
Specifications
| Size | 1" |
| Connection | Female NPT × Female NPT |
| Body Material | Fiber-reinforced nylon |
| Pressure Rating | 20–150 PSI |
| Solenoid | 24 VAC |
| Flow Control | External, adjustable |
| Scrubber | Yes |
| Body Style | Globe/Angle |
| Warranty | 5 years |
