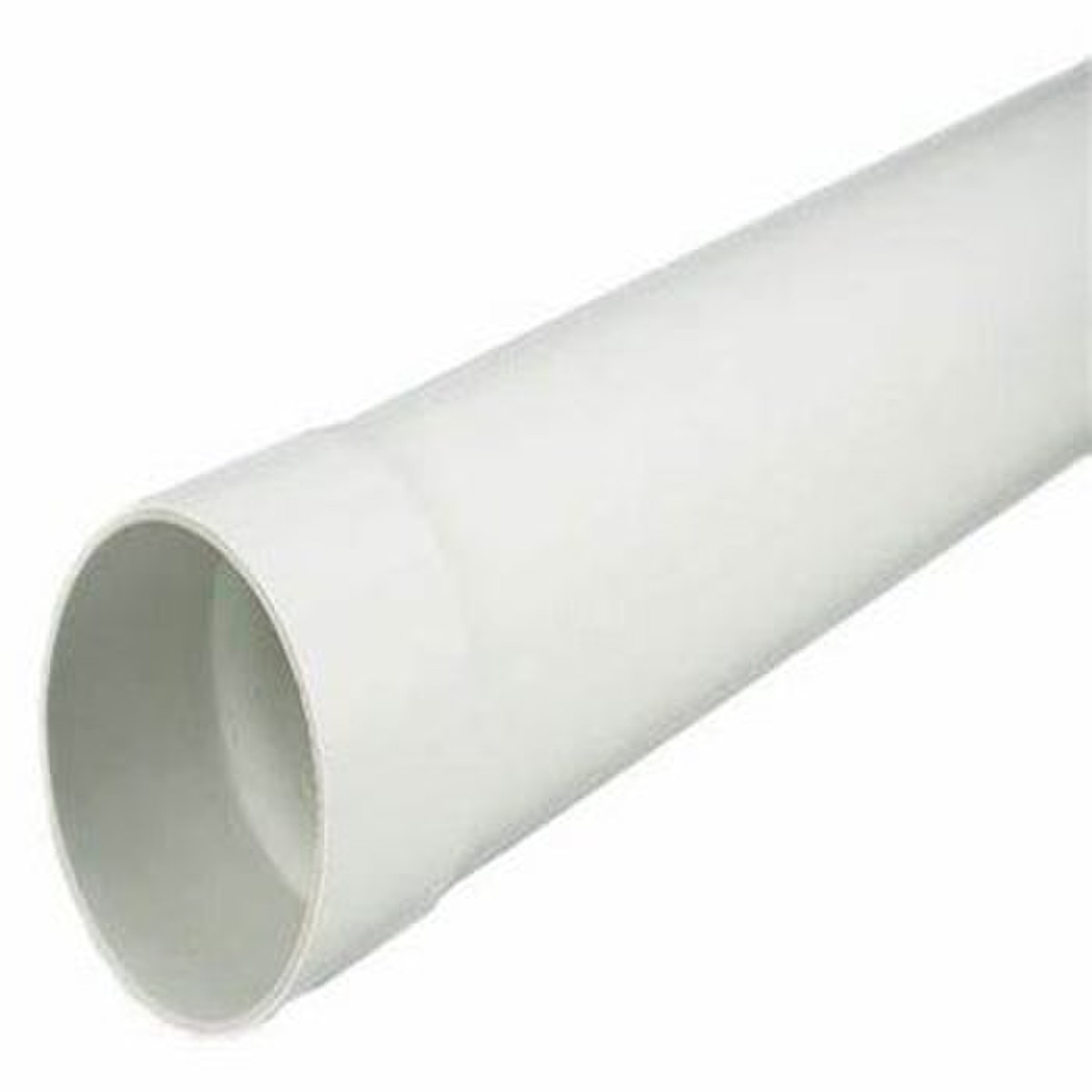

PVC Pipe 4" Sewer Solid ASTM per ft - NOTE: Sold in 10' lengths
Details
Details
Product Description
PVC SDR 35 Sewer Pipe, 4" — ASTM D3034 gravity-sewer PVC; used for drain, waste, and vent lines, subdrainage, and non-pressure irrigation drainage applications.
Overview
PVC SDR 35 sewer pipe in 4" (OD 4.215", wall 0.120") is manufactured to ASTM D3034 for gravity-flow sewer, storm drain, and subdrainage service. It is not a pressure pipe — its flat-ring stiffness is rated for burial loads, not internal pressure. In a landscape and irrigation context, SDR 35 is commonly used for site drainage, French drain collector lines, catch basin tie-ins, retention pond overflow piping, and non-pressure return lines in recirculating water feature systems.
SDR 35 PVC uses bell-and-spigot gasket joints (ASTM D3212) for quick field assembly without solvent cement, making it suitable for gravity-drainage runs where settlement deflection is anticipated. The smooth internal bore reduces friction loss in high-flow drainage scenarios. While commonly green or white depending on manufacturer, standard colour for drainage PVC varies; do not connect to pressure-rated fittings without confirming the pipe’s pressure rating. Not for potable water or pressurised irrigation service.
Specifications
| Nominal size | 4" |
| Outside diameter | 4.215" |
| Wall thickness | 0.120" |
| SDR | 35 |
| Standard | ASTM D3034 |
| Joint type | Bell-and-spigot with elastomeric gasket (ASTM D3212) |
| Service | Gravity sewer / drainage (non-pressure) |
| Part No. | SP040-ASTM-S |
